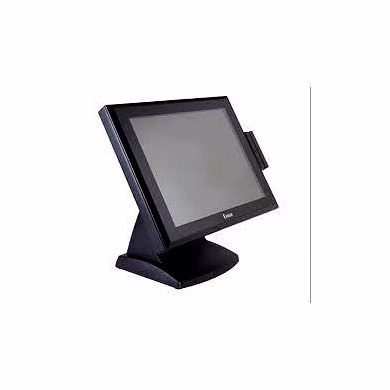

POS-815
BrandEssae
SKUVT203
-
Product is not available
- Price upon request
-
-
The Sleek and Ergonomic design allows POS-815 to be perfect fit to the Retail & Hospitality Industry. POS-815 is truly Fanless Processor series with IP-65 grade Front Panel. POS-815 series supports Android, Windows & Linux Operating System. POS-815 offers seamless Integration of Additional Accessories such as MSR, 2x20 LCM Customer Display, 10.4" LCD Customer Display
-
Additional Information
Model
Model POS-815A POS-815B POS-815C CPU Rk3288, Quad-Core A17, 1.20 GHz Intel Baytrial j1900 QUAD Core 2.00 GHz
Embedded 2 MB Cache MemoryIntel Core i3-6100U 2.30 GHz
3 MB Cache MemoryOperator Display
Size 38.1 cm (15") TFT LCD with LED Backlight, Anti-glare Resolution/ Brightness 1024 x 768/ 350 nits Touch Screen Projected Capacitive Touch (PCAP) – True FLAT Memory
Storage Memory 16 GB eMMC Flash 128 GB Solid State Disk (SSD) or 500 GB HDD System Memory 2 GB DDR3 RAM 4 GB DDR3L RAM (expandable upto 8 GB) & 4 GB DDR4 RAM (expandable upto 16 GB) External Interface ports
USB 4 5 4 Serial(DB9) 2 3 3 Network 1 x Gigabit LAN 1 x Gigabit LAN 2 x Gigabit LAN Display Port 1 x VGA 1 x HDMI Standard Features Wi-Fi & Bluetooth Factory options Wi-Fi LAN module (Mini-PCIe) Audio 1 x Line-In, 1 x Line-out Environmental
Operating Temperature 5°C ~40°C Power Adapter DC 12 V/5 A 60 W Dimension (W x D x H) 382 mm x 256 mm x 355 mm Optional Accessories
Printer Thermal printer, 79.5 mm paper, 220 mm/sec, Auto-cutter
Interface : USB only or Serial+USB+LAN (Factory option)Cash Drawer 5-Bill/8-Coin Metal Cash Drawer with Lock & Key and micro-switch MSR 3 Track-OPOS Compliant, USB interface Customer Display 26.4 cm(10.4") Touch (PCLP) LCD, USB interface (rear mounted) Display resolution: 800 x 600
or 20 x 2 Graphic LCD (rear mounted)
or 20 x 2 Graphic LCD (Pole type)Mounting options VESA-compliant Wall Mount Kit Net Weight 5.3 kg (approx) Operating system
Operating System supported Android 7.1.2 Nougat Windows 10 IOT Enterprise 2016 LTSB Entry(64 bit)
Windows Embedded POSReady 7
Linux (subject to confirmation)Windows 10 IOT Enterprise 2016 LTSB Value(64 bit)
Windows Embedded POSReady 7
Linux (subject to confirmation) -
