POS-615
BrandEssae
SKUVT200
-
Product is not available
- Price upon request
-
-

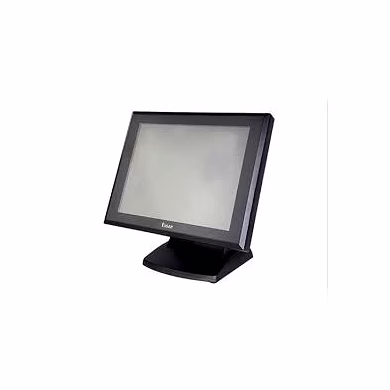

POS – 615 is a highly advanced POS system powered by the latest core i3 processor. It is made to deliver exceptional performance even in the most demanding applications. It supports Windows 10 IOT Enterprise and Windows Embedded POS Ready 7 Linux. Additional accessories include 20 x 2 LCM customer display, 26.4 cm (10.4") LCD customer display and MSR.
Salient Features
Board
6th gen core i3 processor, Low power, fan-less processor, Wi-Fi LAN module.
SSD
128 GB
Display
38.1 cm(15") TFT LCD with LED Backlight, Anti-glare.
Operating system
Operating System supported (Both 32-bit &64-bit versions) Windows 10 IOT Enterprise 2016 LTSB Entry
Windows Embedded POSReady 7
Linux (subject to confirmation)Windows 10 IOT Enterprise 2016 LTSB Value
Windows Embedded POSReady 7
Linux (subject to confirmation)
-
Additional Information
Model
Model POS-615B POS-615C Processor Intel Baytrail J1900 QUAD CORE 2.00 GHz processor Embedded, Low Power, FANLESS processor, 2 MB Cache memory Intel Core i3 Chipset Intel Baytrail J1900 with Integrated Graphics chipset Intel H110 Chipset Operator Display
Size 38.1 cm (15") TFT LCD with LED Backlight, Anti-glare Maximum Resolution 1024 x 768 Brightness 350 nits Touch Screen Projected Capacitive Touch (PCAP) – True FLAT Memory
System Memory 4 GB DDR3L RAM (expandable upto 8GB) & 4 GB DDR4 RAM (expandable upto 16GB) Storage Memory 128 GB Solid State Disk (SSD) or 500 GB HDD External Interface ports
Network 1 x Gigabit LAN 2 x Gigabit LAN Display Port 1 x VGA 1 x HDMI USB - 5 Serial (DB9) - 3 Audio -1 x Line-In, 1 x Line-out Environmental
Operating Temperature 5°C ~40°C Storage Temperature -20°C ~ 55°C Power Adapter DC 12 V/5 A 60 W Optional Accessories
Printer High Speed POS Thermal printer, 76 mm paper, 260 mm/sec, auto-cutter (Serial+USB+LAN) interface Cash Drawer 5-Bill/8-Coin Metal Cash Drawer with Lock & Key and micro-switch MSR 3 Track-OPOS Compliant, USB interface Customer Display 26.4 cm(10.4") Touch (PCLP) LCD, USB interface (rear mounted) Display resolution: 800 x 600
or 20 x 2 Graphic LCD (rear mounted)
or 20 x 2 Graphic LCD (Pole type)Mounting options VESA-compliant Wall Mount Kit Dimension (W X D X H)
(without any accessories)4°C tilt angle :382 mm x 220 mm x 356 mm
84°C tilt angle :382 mm x 294 mm x 300 mmNet Weight
(without any accessories)6.1 kg (approx) Operating system
Operating System supported (Both 32-bit &64-bit versions) Windows 10 IOT Enterprise 2016 LTSB Entry
Windows Embedded POSReady 7
Linux (subject to confirmation)Windows 10 IOT Enterprise 2016 LTSB Value
Windows Embedded POSReady 7
Linux (subject to confirmation) -
